FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck

Brand Name : CLW

Model Number : CLW20210909

Certification : ISO9001, CCC, BV, SGS

Place of Origin : SUIZHOU, HUBEI, CHINA

MOQ : 1 unit

Price : Negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 units per month

Delivery Time : 30-35 days after receiving the deposit

Packaging Details : Naked or waxed before shipment

Product name : Garbage compactor Truck, Compressed Waste Refuse Compactor Trucks

Drive Type : 4X2 6WHEELS 6 WHEELER Rear Load Refuse Truck

Drive model : Left hand drive, Right Hand Drive, RHD

Loading capacity : 6 tons, 8 tons, 10 tons, 6T, 7T. 8T, 10T

Truck Brand : Sinotruk/Sinotruck HOMAN, shacman, FAW, FOTON, jac

Tuck type : Waste collection truck.

Other equipment : with hyraulic systerm

Condition : China HOMAN brand, Brand new truck

Fuel type : Diesel

After-sales service provided : Overseas third-party support available,Online support,Video technical support,Free spare parts

Transmission type : Manual

Emission standard : Euro 3,Euro 4,Euro 2

Truck type : Garbage Compressor,Garbage Compactor

Engine power : 150-250HP

Name : new refuse compactor trucks,garbage compactor recycling truck

Contact Now

FOTON AUMAN 6 Wheels Cummins Engine 12M3 12CBM Compressed Garbage Compactor Truck

Product Description:

1. foton Auman chassis with weichai engine

2. compactor garbage truck capacity 8-12 cubic meters

3. ISO 3C certification

4. one year warranty


Detailed Specification for FOTON AUMAN truck chassis with Cummins Engine:

Cabin Left rudder/half row
Whole vehicle main dimensions Overall dimensions (LxWxH)mm 8325×2462×2750
Wheel base(mm) 4800
Weight data Curb weight(kg) 4770
Gross vehicle weight(kg) 22000
Persons in cab (persons) 2
Engine Model ISB220 40
Emissions standards EURO-IV
Displacement(L) 5.9
Rated Power 162
Max torque 800
Gearbox Model 8JS105TA
Clutch Type Single dry diaphragm spring
Front axle Type 5.5.T
Rear axle Type/Mainreducetion ratio 10T/4.875
Suspension Front suspension/Leaf spring number Non-independent suspension longitudinal plate spring /10
Rear suspension/Leaf spring number Non-independent suspension longitudinal plate spring /10+8
Brake system Service brake Drum-type pneumatic brake
Parking brake Barely able to brake
Basic equipment Hydraulic turn-over/cruising manual air conditioning/radial tire with inner tube 10.00R20/ manual door and window and rearview mirror/front + rear stabilizer bar /MP3 / power steering/knit shock absorber seat (air bag)

Upper equipment for FOTON AUMAN Garbage Compactor truck:

Technical Parameters Effective volume of trash bin 10-15m³
Filler volume 1.5m³
Rated pressure of hydraulic system 19(Mpa)
Loader working time ≤25(mm)
Trash dumping time ≤40(s)
Filler lifting time ≤12(s)
Wastewater tank volume ≥300(L)
Manipulator flip quality ≥600(Kg)
Back flip form Hanging bucket
Top material
(Curved box)		 Front box 5mm bottom plate, 4mm side plate, 3mm top plate, Q345 steel plate
Dozer Q345B steel plate
Stuffer Q345B steel plate
Scraper skateboard assembly Q345B steel plate
Rear flip device Q345B steel plate and profile
Subframe material Made of Q345 manganese plate
Hydraulic system Cylinder Foshan naval power
Oil pump Hefei Changyuan
Multi-way valve Hefei Changyuan
Process requirements Corrosion inside the tank Industrial grade anti-corrosion
Welding and spraying requirements Execute in accordance with "Fukuda Overseas Compression Garbage Truck Top Installation Specification"
Glue requirements The tank body, mudguard, sub-frame welded joints and side lights need to be treated with sealant

More pictures for FOTON AUMAN 6 Wheels Cummins Engine 12M3 12CBM Compressed Garbage Compactor Truck:

FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor TruckFOTON AUMAN 6 Wheeler 12M3 Garbage Compactor TruckFOTON AUMAN 6 Wheeler 12M3 Garbage Compactor TruckFOTON AUMAN 6 Wheeler 12M3 Garbage Compactor TruckFOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck

Porducts details and drawings:

FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck

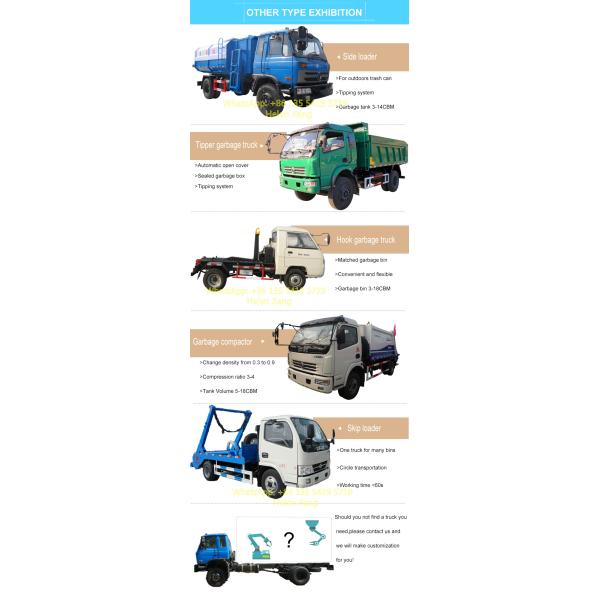

Other Types of Garbage trucks:

FOTON AUMAN 6 Wheeler 12M3 Garbage Compactor Truck

Warranty:

1. One year free warranty for major 3 components of our trucks: engine, gearbox, axles.
2. We offer video guidance and our engineers will go to customer's country to assist the installation and operation when quantity reaches 20 units.
3. Transportation warranty: our company offers transportation insurance for customer to ensure the products arriving at destination safely.

FAQ

Q: Can I buy a sample of your product for testing?

A. Yes, that's fine. Our MOQ is 1set.

Q: What's about the payment?

A: 40% deposit by T/T before order,balanced by T/T before delivery.

Q: How about quality of your factory product ?

A: Our product quality is ahead of other manufacturers in the industry. We have advanced production equipment ,skilled workers and perfect mangement quality. So the quality is under control. Our products are certificated by ISO 9001:2008,CCC and BV, and many trucks passed SGS inspection .


Q: How do you gurantee the quality of the product?

A: Don't worry, my dear client. Any one of you is very important to us. So we will do inspect all of the goods before shipment. And we had joined the trade credit insurance system. If the product received has quality problems, Alibaba will return the advance payment back to you.

Q: Why do you choose us?

A: We are self-produced and self-selling manufacturer and we have more than 15 years of production experience, our products have been sold all over the world.

Q: What about your after-sale service?
A: We offer 1 year after-sale service. We can supply the spare parts at factory price all the time.

Q: Can we visit your factory before purchasing?
A: We welcome you to visit our factory any time and we will show you our production line .
